Standard Horizon
01 November 2015

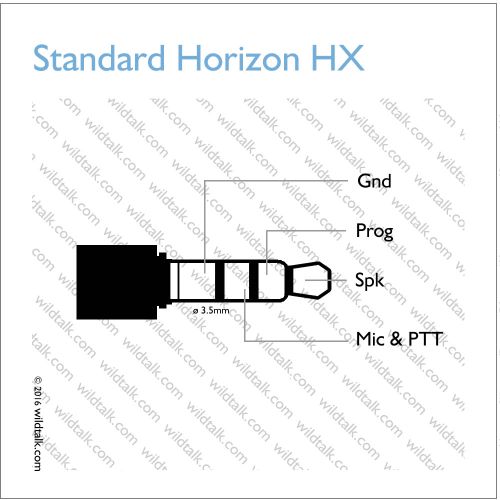

This wiring plan is for Standard Horizon radios with a single 3.5mm threaded four pole socket.
3.5mm Pin with screw locking thread.
Gnd.
Common Ground for Mic, Speaker and Mic
Mic & PTT
Electret Mics connect here. When the Mic is connected via a PTT switch to Ground the radio transmits. (Mic and PTT are in series).
Prog
Spk
Speaker Out
HX320. HX210, HX40, HX890
