GPI VHF Motorcycle Antenna
Key Features
- Easy to fit.
- With FME socket attached.
- Ground-plane independent.
- Fast removal of whip without tools.
- Soft and flexible whip.
- Easily fitted to any panel, plastic, metal and GRP

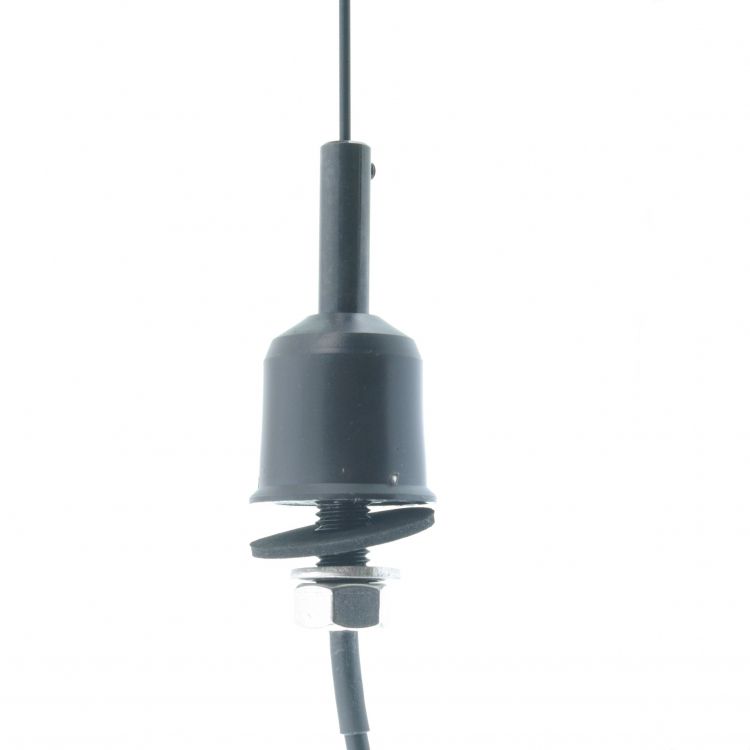

The is a GPI (ground-plane independent) antenna for VHF frequencies 136 to 175 Mhz.
Ground-plane independent means it is probably the easiest antenna to fit. Its not fussy about what it is attached to. Plastic or metal panels or brackets.
It will supplied cut to the right length for your transmit frequencies (email us these) or uncut so you can trim it yourself.
It doesn't not need a ground-plane, it can be fitted to any horizontal surface, non conducting or metalwork making it ideal for Motorcycles or mounting on other non-metallic structures.
This makes it ideal for Motorcycle installation or for Machine to Machine data communications.

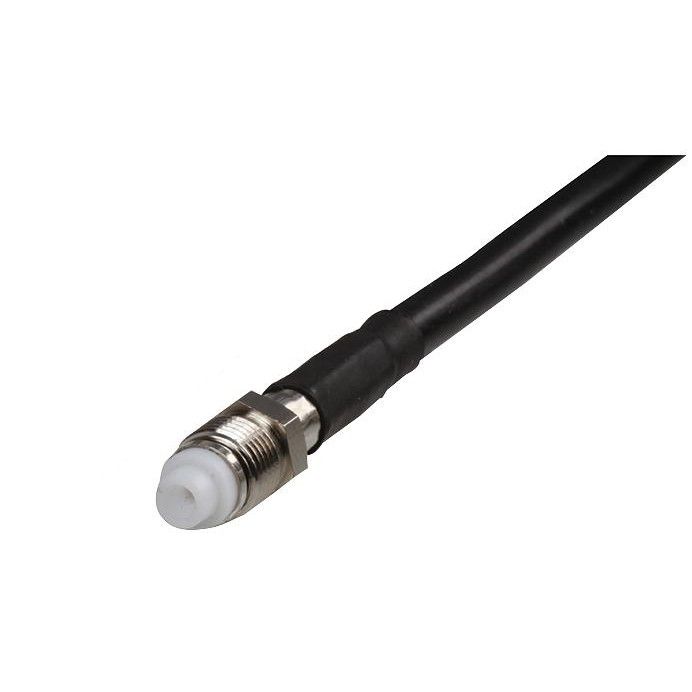

Supplied fitted with an FME female plug so the cable can be threaded through a 9mm hole. You will need two further parts to connect to most handheld radios. An FME to BNC adaptor then a suitable BNC adaptor to suit your radio. Click the Accessories & Spares tab for these.
ANT-HM-GPI-VHF-FME
For an antenna for fitting to Kenwood see this version:
If you need a rapid-disconnect version please order these three parts.
Applications / Other Information
- Frequency range 136.-175Mhz
- Overall height up to 110cm depending on frequency.
- Mounting Hole 12mm
- Max panel thickness 10mm with washer. 12mm without washer.
- Supplied with a fitted FME connector.
- Cable hole for FME plug 8mm (unless otherwise requested).
- Cable Diameter 4.8mm
- Cable Length 3m (Can be supplied shorter. Please email).
